ResultSortedTableInHtmlTable

The SortedTableInHtmlTable component renders the contents of a single query's sorted ResultTable in a Queries object as an HTML <table> element, and registers a listener so that any changes to that result will cause a re-render.

ResultSortedTableInHtmlTable(props: ResultSortedTableInHtmlTableProps & HtmlTableProps): ComponentReturnType
TypeDescription
propsResultSortedTableInHtmlTableProps & HtmlTableProps

The props for this component.

returnsComponentReturnType

A rendering of the ResultTable in a <table> element.

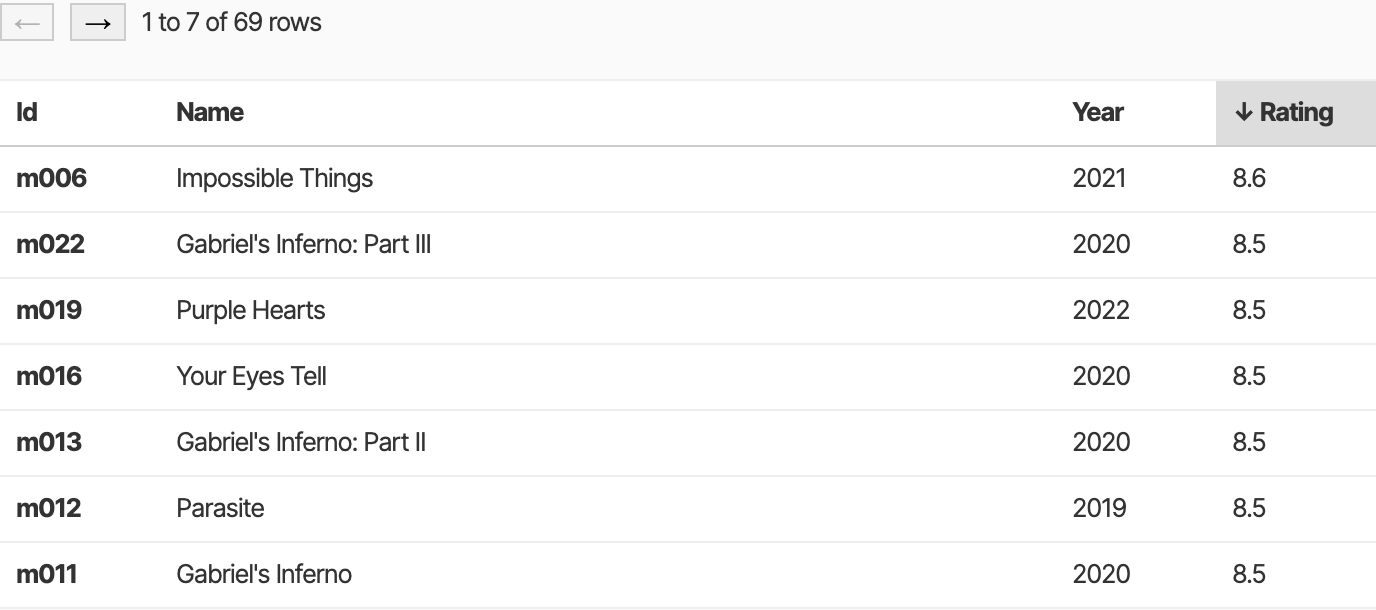

See the <ResultSortedTableInHtmlTable /> demo for this component in action.

The component's props identify which ResultTable to render based on query Id, and Queries object (which is either the default context Queries object, a named context Queries object, or by explicit reference). It also takes a Cell Id to sort by and a boolean to indicate that the sorting should be in descending order. The offset and limit props are used to paginate results, but default to 0 and undefined to return all available Row Ids if not specified.

This component renders a ResultTable by iterating over its Row objects, in the order dictated by the sort parameters. By default the Cells are in turn rendered with the CellView component, but you can override this behavior by providing a component for each Cell in the customCells prop. You can pass additional props to that custom component with the getComponentProps callback. See the ResultCustomCell type for more details.

This component uses the useSortedRowIds hook under the covers, which means that any changes to the structure or sorting of the ResultTable will cause a re-render.

You can use the headerRow and idColumn props to control whether the Ids appear in a <th> element at the top of the table, and the start of each row.

The sortOnClick prop makes the table's sorting interactive such that the user can click on a column heading to sort by that column. The style classes sorted and ascending (or descending) are added so that you can provide hints to the user how the sorting is being applied.

Provide a paginator component for the ResultTable with the paginator prop. Set to true to use the default SortedTablePaginator, or provide your own component that accepts SortedTablePaginatorProps.

Finally, the onChange prop lets you listen to a user's changes to the ResultTable's sorting or pagination.

Examples

This example creates a Provider context into which a default Queries object is provided. The ResultSortedTableInHtmlTable component within it then renders the ResultTable in a <table> element with a CSS class.

import {createQueries, createStore} from 'tinybase';
import {Provider} from 'tinybase/ui-react';
import React from 'react';
import {ResultSortedTableInHtmlTable} from 'tinybase/ui-react-dom';
import {createRoot} from 'react-dom/client';

const App = ({queries}) => (
  <Provider queries={queries}>
    <Pane />
  </Provider>
);
const Pane = () => (
  <ResultSortedTableInHtmlTable
    queryId="petColors"
    cellId="color"
    className="table"
  />
);

const queries = createQueries(
  createStore().setTable('pets', {
    fido: {species: 'dog', color: 'brown'},
    felix: {species: 'cat', color: 'black'},
  }),
).setQueryDefinition('petColors', 'pets', ({select}) => select('color'));
const app = document.createElement('div');
createRoot(app).render(<App queries={queries} />);
console.log(app.innerHTML);
// ->
`
<table class="table">
  <thead>
    <tr>
      <th>Id</th>
      <th class="sorted ascending">↑ color</th>
    </tr>
  </thead>
  <tbody>
    <tr>
      <th>felix</th>
      <td>black</td>
    </tr>
    <tr>
      <th>fido</th>
      <td>brown</td>
    </tr>
  </tbody>
</table>
`;

This example creates a Provider context into which a default Queries object is provided. The ResultSortedTableInHtmlTable component within it then renders the ResultTable with a custom component and a custom props callback for the color Cell. The header row at the top of the table and the Id column at the start of each row is removed.

import {Provider, ResultCellView} from 'tinybase/ui-react';
import {createQueries, createStore} from 'tinybase';
import React from 'react';
import {ResultSortedTableInHtmlTable} from 'tinybase/ui-react-dom';
import {createRoot} from 'react-dom/client';

const App = ({queries}) => (
  <Provider queries={queries}>
    <Pane />
  </Provider>
);

const Pane = () => (
  <ResultSortedTableInHtmlTable
    queryId="petColors"
    cellId="color"
    customCells={customCells}
    headerRow={false}
    idColumn={false}
  />
);

const FormattedResultCellView = ({queryId, rowId, cellId, bold}) => (
  <>
    {bold ? <b>{rowId}</b> : rowId}:
    <ResultCellView queryId={queryId} rowId={rowId} cellId={cellId} />
  </>
);
const customCells = {
  color: {
    component: FormattedResultCellView,
    getComponentProps: (rowId) => ({bold: rowId == 'fido'}),
  },
};

const queries = createQueries(
  createStore().setTable('pets', {
    fido: {species: 'dog', color: 'brown'},
    felix: {species: 'cat', color: 'black'},
  }),
).setQueryDefinition('petColors', 'pets', ({select}) => select('color'));
const app = document.createElement('div');
createRoot(app).render(<App queries={queries} />);
console.log(app.innerHTML);
// ->
`
<table>
  <tbody>
    <tr>
      <td>felix:black</td>
    </tr>
    <tr>
      <td><b>fido</b>:brown</td>
    </tr>
  </tbody>
</table>
`;

Since

v4.1.0
